Lashing Bar (Swivel Head) BB-B1
— Heavy-Duty Link Ensuring Safety and Flexibility in Cargo Lashing —
Product Overview
The Lashing Bar Eye to Swivel Head Plug is a vital component in marine container lashing bar systems, designed to connect the eye end of a lashing bar (lashing rod) to the swivel head plug mounted on the vessel’s deck or bulwark. This connection ensures secure and efficient transfer of lashing forces, while its swivel design allows angular adjustment to accommodate vessel movement and varying load directions.
Manufactured from high-tensile alloy steel with a hot-dip galvanized finish, this product delivers exceptional tensile strength, corrosion resistance, and long-term durability in harsh marine environments. Fully compatible with ISO-standard container lashing systems, it can be used together with turnbuckles, D-rings, and other lashing fittings to form a complete heavy-duty securing solution.
As a dedicated marine securing solutions supplier, OLIPORTS has extensive expertise in the design and manufacturing of the Lashing Bar Eye to Swivel Head Plug. Our proprietary production process combines high-tensile alloy steel with hot-dip galvanized surface treatment, ensuring exceptional tensile strength, corrosion resistance, and long-term durability in harsh marine environments.
Technical Specification of Lashing Bar Swivel Head
- Model: BB-B1
- Length: 1800-4700mm
- Safe Working Loads: Tension 250KN
- Breaking Loads: Tension 500KN
- Material: Heat Treatable Steel
- Finish: Hot Dip Galvanized
- Class Approval: ABS, DNV-GL, CCS, Others
- Category: Loose Fittings on Deck
- Tags: Lashing Bar; Container Lashing Bar; Container lashing Rod; Container Securing; Container Loose Parts;
* Can be customized according to your needs, type and test class approved on request.
For different vessel types and stowage layouts, OLIPORTS offer multiple lengths (such as 2400 mm and 4700 mm) and customized specifications of the Lashing Bar Eye to Swivel Head Plug, all strictly compliant with ISO standards and class society requirements. With advanced CNC machining, automated welding, and precision testing facilities, OLIPORTS consistently delivers bulk quantities to global shipyards, shipping companies, and marine service providers, guaranteeing precision and reliability in every batch.

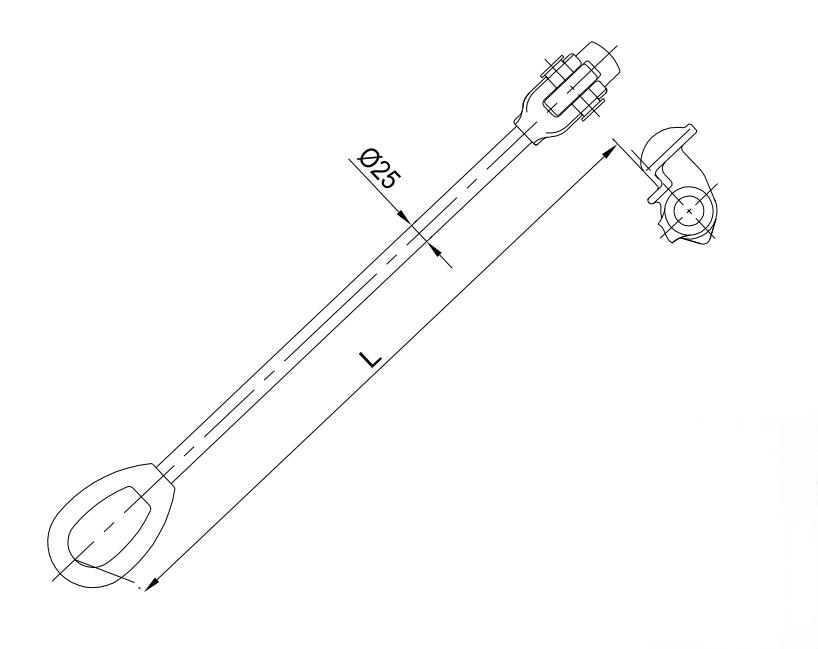

Drawings and Features of Lashing Bar Swivel Head
Key Features
Note: Before each use, check the eye and swivel head for cracks, bending, or wear. Replace immediately if any damage is found. And ensure the component’s dimensions are compatible with the lashing bar, turnbuckle, and corner casting/deck socket in use. Do not mix incompatible models.
- Swivel Functionality – Allows multi-angle operation, reducing stress and wear.
- Custom Lengths Available – Standard 2400 mm and 4700 mm, with other lengths upon request.
- Standard Compatibility – Fits ISO container lashing systems for global shipping.
- Durable Construction – High-tensile alloy steel with anti-corrosion coating for extended service life.
- Compatible with marine lashing systems
- Weldable & Class Approved: Meets ABS, DNV-GL, CCS, and ISO standards
| Types | L | Weight |
| BB-B1/2400 | 2400 | 11.9KG |
| BB-B1/4700 | 4700 | 21.7KG |
Application
The Lashing Bar Eye to Swivel Head Plug is a critical connecting component in marine container lashing systems, linking the container lashing bar / lashing rod to the container’s corner casting or deck socket. In international shipping and long-haul sea transport, it plays an essential role in securing multi-tier containers, preventing movement or tipping caused by vessel roll, wave impact, or high wind conditions.
Typical application scenarios include:
- Ocean-Going Container Vessels – Installed at the bottom corner castings of second-tier or third-tier containers, working with turnbuckles to adjust tension.
- Ro-Ro Vessels & General Cargo Ships – Integrated into deck securing systems as a replacement or reinforcement for standard lashing arrangements.
- Port & Terminal Operations – Used in temporary securing systems during container loading and unloading to maintain stability.
- Shipyard Newbuild Projects – Supplied as a standard fitting within a vessel’s complete lashing system during construction.
With its high tensile strength, corrosion-resistant finish, and standardized connection design, this part is trusted by global shipping lines, shipyards, port operators, and marine service providers. By choosing OLIPORTS as your supplier, you ensure reliable performance, compliance with ISO & class society standards, and consistent availability for both scheduled maintenance and large-scale fleet projects.
